Automatic Tank Gauges

EVO™ 550 & EVO™ 5000

EVO 550 Hero.psd
EVO 550 Hero.psd EVO 550 Hero.psd
Automatic Tank Gauges

EVO™ 550 & EVO™ 5000

EVO™ 550 & EVO™ 5000 Automatic Tank Gauges (ATGs) provide highly accurate inventory management and full-featured compliance monitoring for any size fuel system.

EVO 600 Highlight Hero.psd

NEVER STOP EVOLVING

We are driven by our pursuit to innovate, simplify, secure, and connect every station owner to their fuel management system. EVO™ 550 and EVO™ 5000 ATGs feature simple setup and operation, remote connectivity, and advanced security features to protect your fuel system while keeping you directly connected to vital site data whenever, and wherever.

Highly Capable

Make informed, data-driven inventory management decisions with features like, inventory monitoring, tank testing, containment compliance monitoring, and get expanded leak detection and containment monitoring capabilities.

Simple Interface

A full-color 7” LCD touchscreen serves up one of the most intuitive user interfaces available with simplified user features you won’t find anywhere else.

Secure Data

EVO™ Series ATGs keep your site in compliance and protected from security threats with customizable user roles, user activity tracking, and up to 3-years of data back-up to protect against power outages or other system interruptions.

TECHNICAL ADVANTAGES

Input Capacity

EVO™ 550 can support up to 36 sensors and 36 probes, while the EVO™ 5000 can support up to 72 sensors and 72 probes.


Turbine Pump Interface

Enhanced remote pump monitoring and control including pump-in-water automation, clogged intake escalation, tank leveling, and tank priority.


Remote Communication

The FFS PRO® Connect web interface allows users to securely connect directly to an EVO™ Series ATG from any web enabled device.


Inventory Reconciliation

Inventory Reconciliation is an automated leak detection function that analyzes tank volume, deliveries, and sales data to detect releases with a high level of accuracy.


Tank Autocalibration

Eliminate discrepancies in delivery reporting and daily reconciliations caused by inaccurate tank information programmed into the ATG with this function that automatically generates a highly accurate tank strapping chart.


Electronic Line Leak Detection

Electronic line leak detection (ELLD) learns the characteristics of each line, eliminating possible configuration errors and ensures unparalleled leak detection accuracy.


Secondary Containment Monitoring

Continuously monitor double-wall piping, tank, and sump interstitial spaces to detect any potential leaks in these double-wall containments.


DEF/AdBlue® Recirculation

Get automated control of your Diesel Exhaust Fluid (DEF) system while preventing frozen lines with energy and cost-saving recirculation functionality.

EVO550 EVO5000 Advanced Wide.psd
SYSTEM SECURITY

EVO™ Series ATGs help keep sites in compliance while providing marketers with the highest level protection from the security threats facing our industry.

EVO 600 TPI Wide.psd
TURBINE PUMP INTERFACE

Turbine Pump Interface is a powerful tool that creates a network between your Submersible Turbine Pump (STP) controllers and EVO™ Series ATGs. Through TPI, the tank gauge can be programmed to respond to faults in the submersible pumping system and react with intelligence that pump controllers alone cannot.

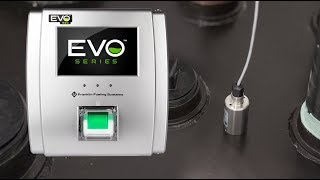

SEE TPI IN ACTION

Pump In Water Automation

When the water level in a tank approaches the pump intake, the tank gauge will enter alarm mode and automatically shut down the pump, protecting the system and consumers from water being pumped from that tank.

Leveling & Priority Modes

When managing two storage tanks of the same product ‘Leveling Mode’ can keep both tanks at the same percentage full without the use of a syphon bar between the two tanks.

Remote Pump Interaction

By networking the intelligent controllers to the fuel management system via TPI, a technician can remotely connect to the site to review the logged event history and view the status.

EVO550 EVO5000 Advanced Wide.psd
ADVANCED FEATURES

EVO™ 550 and EVO™ 5000 ATGs offer additional advanced features and capabilites to manage your entire system as efficiently as possible.

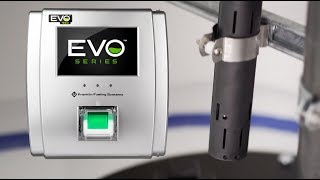

WATCH THEM IN ACTION

AutoLearn™ Technology

Patented AutoLearn™ electronic line leak detection capability including Statistical Line Leak Detection for high throughput sites.

Corrosion Control™ System

Proactively monitor for and remove corrosion-causing water from your fuel system with system automation and monitoring powered by EVO™ 550 or EVO™ 5000 ATGs.

Streamlined Setup

Hardware auto-detection and wiring confirmation, multipoint tank charting, network printer auto-detection, and the ability to download and upload entire programming profiles from one ATG to another.

EVO Select Wide.psd
FIND THE RIGHT EVO™ SERIES ATG FOR YOUR SITE

The EVO™ Series family of ATGs offers four different options with right-sized features to meet the requirements of your specific application, size, and compliance needs. Which ATG is right for your application?

ATG SELECTION GUIDE
EVO550 Dims Comps.psd

Components

  1. Cover
  2. LCD touch screen
  3. LED indicators
  4. Printer
  5. Mounting tabs
  6. Cooling vents
  7. Module slots
  8. Communication ports
  9. Modem port
  10. Annunciator (audible alarm)
  11. Ethernet port
  12. USB ports (qty 2)
  13. Serial comm port 1
  14. Bus extenstion
  15. Serial comm port 2
  16. RS-485 comm port
  17. Controller module
  18. Power supply module
  19. AC input module
  20. 10 Amp relay module
  21. I/O module
  22. 4-20mA module EXP
  23. Relay module
  24. Blank
  25. Intrinsically safe barrier
  26. Probe module
  27. 4-20mA module
  28. 2 wire sensor module
  29. 3 wire sensor module

Specifications

  • Maximum tanks monitored: 36 (EVO™ 550) / 36 (EVO™ 5000)
  • Maximum sensor input capacity: 48 (EVO™ 550) / 96 (EVO™ 5000)
  • Lines capacity: 24 (EVO™ 550) / 24 (EVO™ 5000)
  • Dry contact input channels: 2
  • AC input channels: 36 (EVO™ 550) / 36 (EVO™ 5000)
  • Relay output channels: 24 (EVO™ 550) / 24 (EVO™ 5000)
  • Connectivity: Ethernet, RS-485, standard USB (qty 2)
  • Display type: 7” (17.78 cm) color LCD touch screen
  • Printer type: Thermal (also network or USB)
  • Alarm: Internal audible alarm
  • LEDs: Alarm, warning, and power
  • Applicable liquids: Petroleum, chemicals, and waste
  • Level units: Inches, centimeters, and millimeters
  • Volume units: gallons or liters (mass with density option)
  • Power requirements: 110 to 240 VAC, 50/60 hz, 2.6 Amps
  • Operating temperature: 32° to 104 °F (0° to 40 °C)
  • Humidity: 0-90% non-condensing
  • EVO™ 550: H: 11.75”(300mm), W: 10¼”(260mm), D: 9”(229mm)
  • EVO™ 5000: H: 11.75”(300mm), W: 16½”(419mm), D: 9”(229mm)

Capabilities

  • High/low product, water, and temperature alarm set points
  • Inventory reconciliation / tank auto-calibration / flow rate monitoring
  • Density, mass, and phase separation measurement
  • Email and SMS notifications
  • Back-up generator monitoring / fuel flow control
  • Advanced logic control for DEF/AdBlue® recirculation system
  • MODBUS™ support

Approvals

  • UL, cUL, ATEX, IECEx
  • Third party certification of leak detection capabilities.

Ordering Guide

ATG model, software and hardware options can be listed separately or combined when ordering. Systems shipped from the factory will list the combined part number. Complete part numbers have a specific order and are created using the following guidelines:

TX DPMIE / TRLGSC

  • TX = Base Model Options
    • T550E = EVO™ 550 base ATG
    • T5000E = EVO™ 5000 base ATG
  • DPMIE = Hardware Options (choose all that apply)*
    • D = Display
    • P = Printer
    • M = Internal modem
    • I = Dispenser interface module
    • E = LON module
  • TRFLGC = Software Options (choose all that apply)
    • T = SCALD 24-hour tank testing
    • R or F
      • R = Reconciliation/Autocalibration
      • F = Reconciliation/Autocalibration with Flow Rate Monitoring
    • L or G
      • L = Line leak detection
      • G = Generator Line Leak Detection
    • S = Secondary containment monitoring
    • C = Recirculation, scheduling, and timer conditions

*Only one EVO-DIM or EVO-LON module can be installed per ATG.

Example: T550EDPMI/TRL = EVO™ 550 base model with display, with printer, with internal modem, with dispenser interface module, with SCALD, with reconciliation/autocalibration, and line leak detection.

EVO™ 550 & EVO™ 5000 Base Models

Model Number Description
T5000E EVO™ 5000 base model automatic tank gauge
T550E EVO™ 550 base model automatic tank gauge

EVO™ 550 & EVO™ 5000 Hardware & Software Options

EVO™ 550 and EVO™ 5000 ATGs come standard with the ability to perform in-tank static leak detection. The following software and hardware options can be added to customize your ATG. The internal hardware options will be factory installed when ordered with the ATG.

Internal Hardware Options (550/5000)

Model Number Description
EVO-DIMIB Internal Dispenser Interface Module upgrade for an existing EVO™ 600/ 6000, dispenser interface cable must be ordered separately
EVO-LON (E) EcheLON™ communication module, IFSF protocol capability
TS-MDMIB (M) Internal modem, includes fax and data software capability
  • Only one EVO-DIM or EVO-LON module can be installed per ATG.

Internal Software Options (550/5000)

Model Number Description
TS-CON Enhanced logic conditions including value, counter, value compare, latch, and DEF/AdBlue® recirculation
TS-ELLD Electronic line leak detection
TS-ELLD-G Electronic line leak detection for generator applications
TS-SCM Secondary containment monitoring
TS-TRAC Tank inventory reconciliation and autocalibration
TS-TT Statistical Continuous Automatic Leak Detection (SCALD®) 24-hour tank testing
TS-FLOW Flow rate monitoring
TS-TRAC-F Reconciliation/autocalibration and flow rate monitoring
  • TS-ELLD-G for use only with generator applications, always follow regulatory requirements.

Expansion Consoles

Model Number Description
EVO-EXPC Secondary console to add eleven additional plug-in modules to the primary TS-550, TS-5000, EVO™ 550, EVO™ 5000, EVO™ 600, EVO™ 6000 ATG, comes without a display or printer
EVO-EXPC2 Secondary console to add six additional plug-in modules to the primary TS-550, TS-5000, EVO™ 550, EVO™ 5000, EVO™ 600, EVO™ 6000, comes without a display or printer

EVO™ 550 and EVO™ 5000 Replacement Parts

Model Number Description
TSSP-10ARLY Spare/Replacement 10 Amp Relay Module
TSSP-2WSNS Spare/Replacement 2-Wire Sensor Module.
TSSP-3WSNS Spare/Replacement 3-Wire Sensor Module.
TSSP-420IB Spare/Replacement 4-20mA Module, Intrinsically Safe
TSSP-420EXP Spare/Replacement 4-20mA Module, Explosion-Proof
TSSP-ACI Spare/Replacement AC Input Module
TSSP-IO Spare/Replacement Input/Output Module
TSSP-PRB Spare/Replacement Probe Module
TSSP-RLY Spare/Replacement Relay Module
TSSP-PS Power supply module
TSSP-TRMBLK Package of 10 assorted terminal blocks
TSSP-T550MB TS-550 motherboard (for use with TS-EMS also)
TSSP-T5000MB TS-5000 motherboard
TSSP-SP5FUSE Spare fuse kit
TSSP-EXPPS Expansion console power supply
EVO-CM/R Replacement TS-550/5000 EVO™ controller module, factory programmed with required options
EVO-CMUPG Upgrade kit for EVO-CM in stock to add original options
EVO-TMPTR Thermal internal printer assembly upgrade for an existing EVO™ 600/6000, EVO™ 550/5000, comes with one roll of printer paper
EVO-EXPC Secondary console to add eleven additional plug-in modules to the primary TS-550, TS-5000, EVO™ 550, EVO™ 5000, EVO™ 600, EVO™ 6000 ATG, comes without a display or printer
EVO-EXPC2 Secondary console to add six additional plug-in modules to the primary TS-550, TS-5000, EVO™ 550, EVO™ 5000, EVO™ 600, EVO™ 6000, comes without a display or printer
TS-DIMIB (I) Internal dispenser interface module, dispenser interface cable must be ordered separately
TS-LON (E) EcheLON™ communication module, IFSF protocol capability
TS-MDMIB (M) Internal modem, includes fax and data software capability
  • The serial number of the old CM must be provided when ordering the TSSP or EVO-CM/R. Provide the serial number of the old and new CM when ordering the TSA or EVO-CMUPG.
  • Only one TS-DIM or TS-LON module can be installed per ATG.
